Products

Standard Range of Products

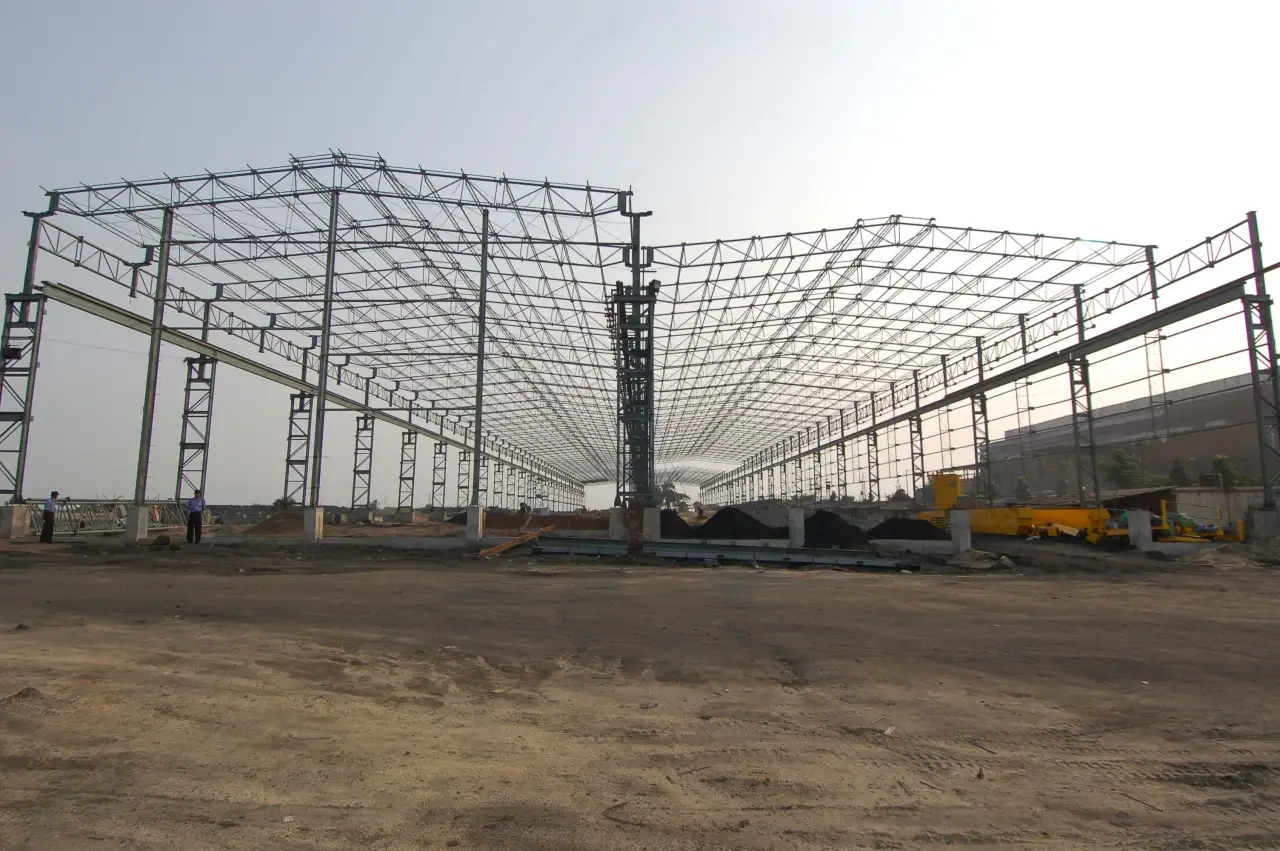

TRUSS TYPE
(Metre)
PORTAL TYPE
(Metre)
SAWTOOTH TYPE
(Metre)
CYCLE/CAR SHED
(Metre)
SPAN 5.597,7.620,9.144
10.668,13.411
15.240,18.288
21.336,24.384
30.400,36.576
12.192,15.240
18.288,21.336
24.384,30.480
36.576,42.672
7.620,9.144
10.668,12.192
15.240
6.096,12.192
BAYS 3.048,3.657,4.064
4.572,6.096
3.810,4.064
4.572,6.096
3.048,3.810
4.064,4.572
3.048,3.810,4.064
4.572
HEIGHT OF
R.S.J/TUBULAR
COLUMN
3.048,3.657,4.267
4.877,5.486,6.096
6.705,7.315
3.048,3.657
4.267,4.877
5.486,6.096
6.705,7.315
3.048,3.657
4.267,4.877
5.486,6.096
3.048,3.657
Standard Range Of Products
FRAME TYPE RECOMMENDED SPAN RANGE REMARKS

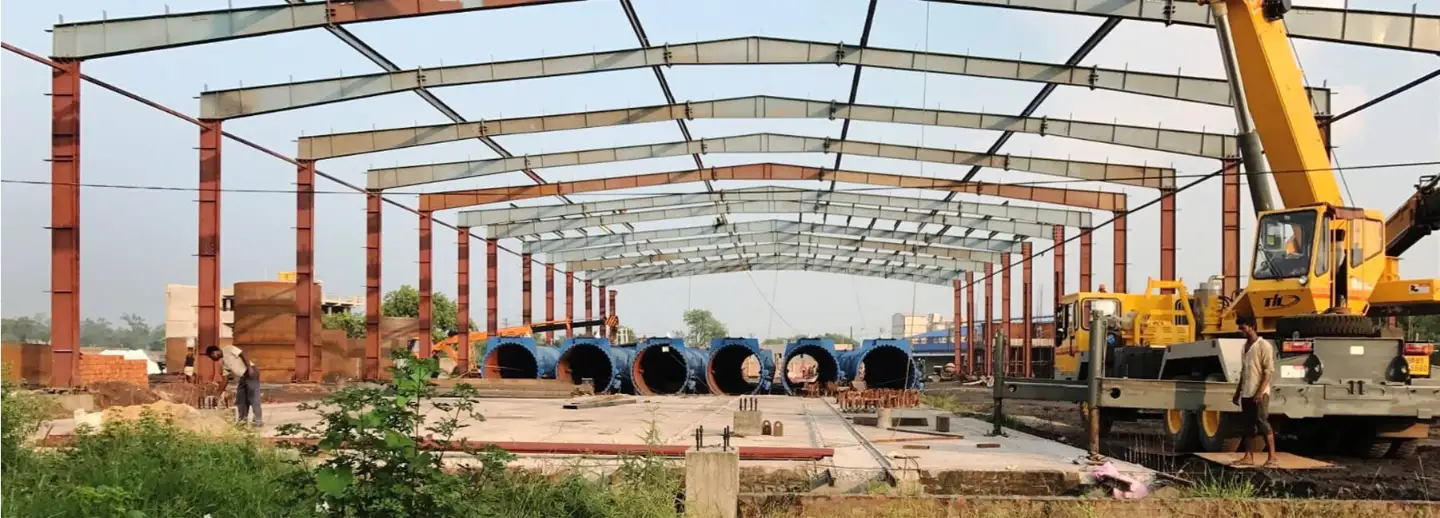

Rigid Frame Clear Span (RFCS) 20-40m Suitable for Ware Houses, Godowns, Workshop, Industrial Buildings having clear soan requirment
Rigid Frame Multi Span – 1 (RFMS-1) 30-50m Suitable for large span Building without a vally gutter.
Rigid Frame Multi Span – 2 (RFMS-2) 40-60m For span greater than 48m it is economical to go for RFMS-2 frame than RMFS-1
Rigid Frame Multi Span – 3 (RFMS-3) 50-75m They are economical than RFMS-2 for spans greater than 72m
Rigid Frame Lean To (RFLT) 6-18m Suitable for extension of existing buildings.
Single Sloped building (SS) 15-30m Suitable for small spans with drainage facility to single side.
Rigid Frame Multi Gable – 1 (RFMG-1) 50-100m Economical than RFMS-1 but with valley gutter.
Rigid Frame Multi Gable – 1 (RFMG-1) 80-120m Economical than RFMS-1 but with valley gutter.
MICROWAVE / FLOOD LIGHT TOWER
TOWER HEIGHT(METRE) LOADING STANDARDS
10 – 90 Location, Weight of Antenna, Floodlight, etc
HIGHWAY BRIDGE / PIPE BRIDGE
SPAN (METRE) LOADING STANDARDS
10,15,20,25
30,35,40,45,
50,60,70,80
HIGHWAY BRIDGE PIPE BRIDGE
CLASS-A,CLASS-B
18R,24R or as per I.R.C specification
Weight of pipe/RM
Dia of pipe/RM Decking materials (if any)
